Engineered Permanent Fabric Structures
Providing MegaDome structures to Manitoba and Saskatchewan.
High-strength steel frames, long-span oval tube design, and tensioned membranes engineered for North America.
Manitoba MegaDome provides MegaDome® structures to Manitoba and Saskatchewan. MegaDome® is a Canadian manufacturer of permanent fabric buildings, specializing in turnkey storage and operational structures for demanding environments. Since 1999, we have engineered, manufactured, and installed fabric-covered buildings designed to perform reliably in industrial, agricultural, and municipal applications across North America.
Our structures are a proven alternative to steel or wood buildings, offering faster commissioning, predictable budgets, and engineered performance tailored to your site.
A permanent fabric building is an engineered structure designed for long-term use, combining a structural steel frame with a high-performance tensioned fabric membrane. Unlike temporary shelters, these buildings are engineered to meet local building codes—including snow load, wind load, and site-specific requirements.
Each series is engineered for durability, scalability, and long-term performance.

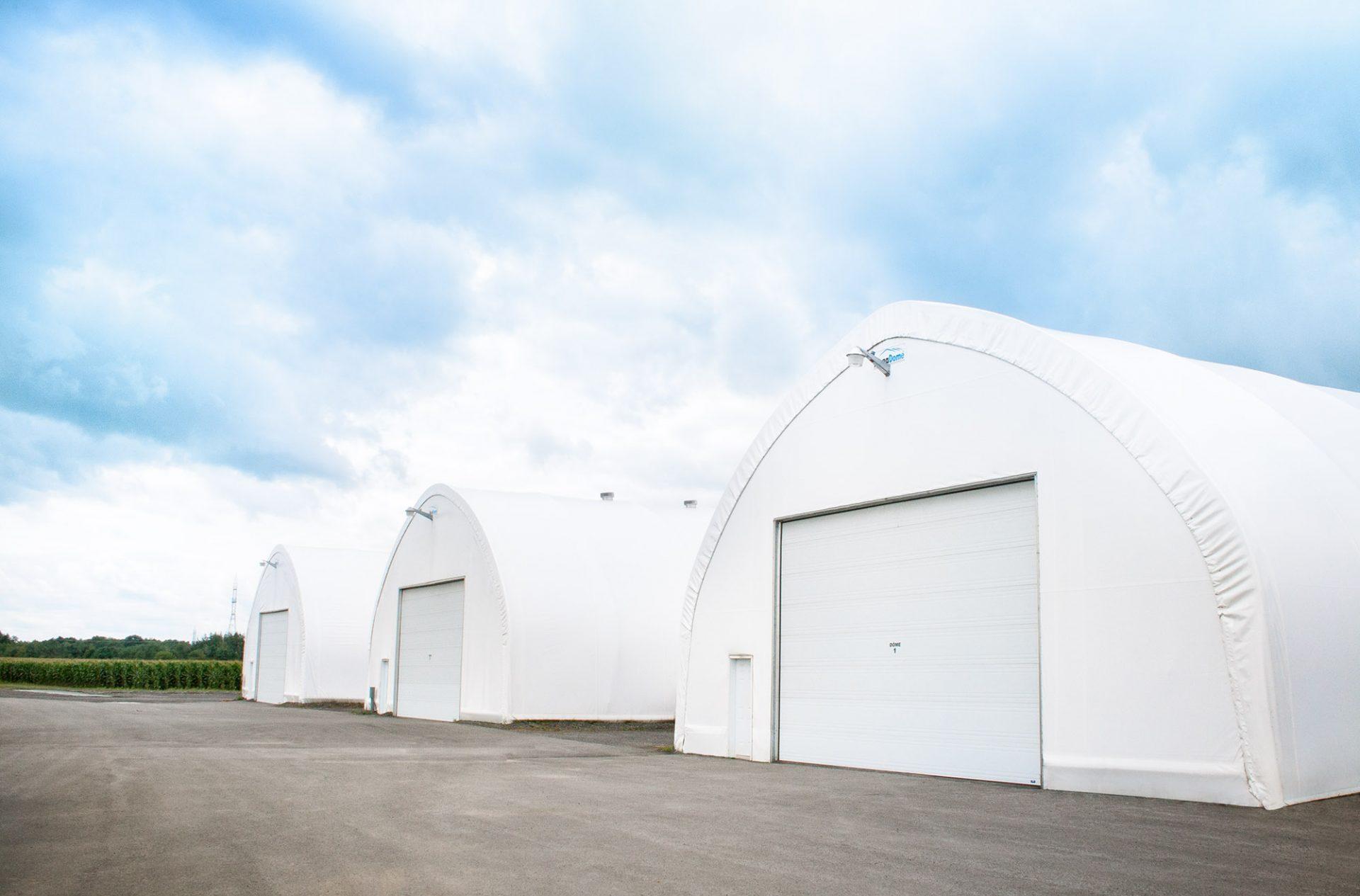

33' to 100'
Most versatile series

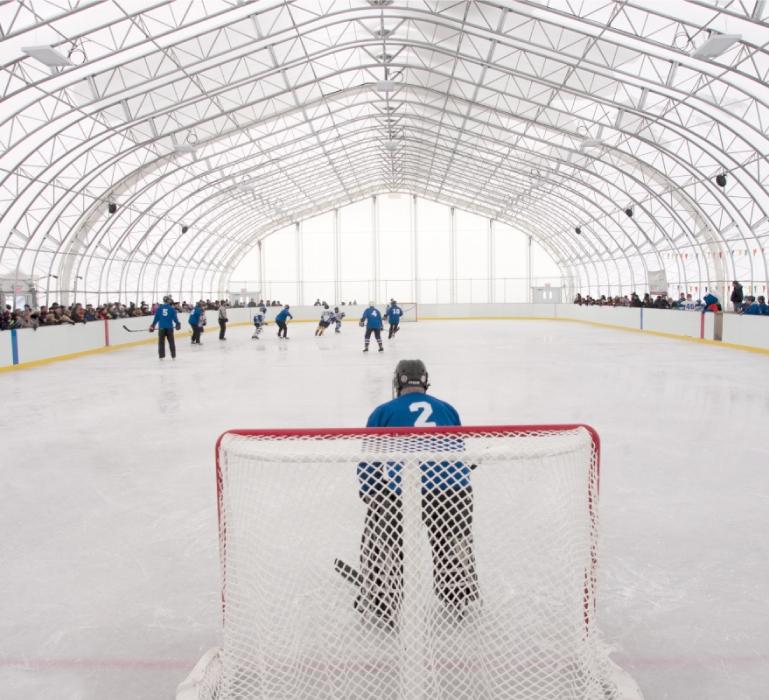

100' to 160'
High-clearance fabric buildings for large projects

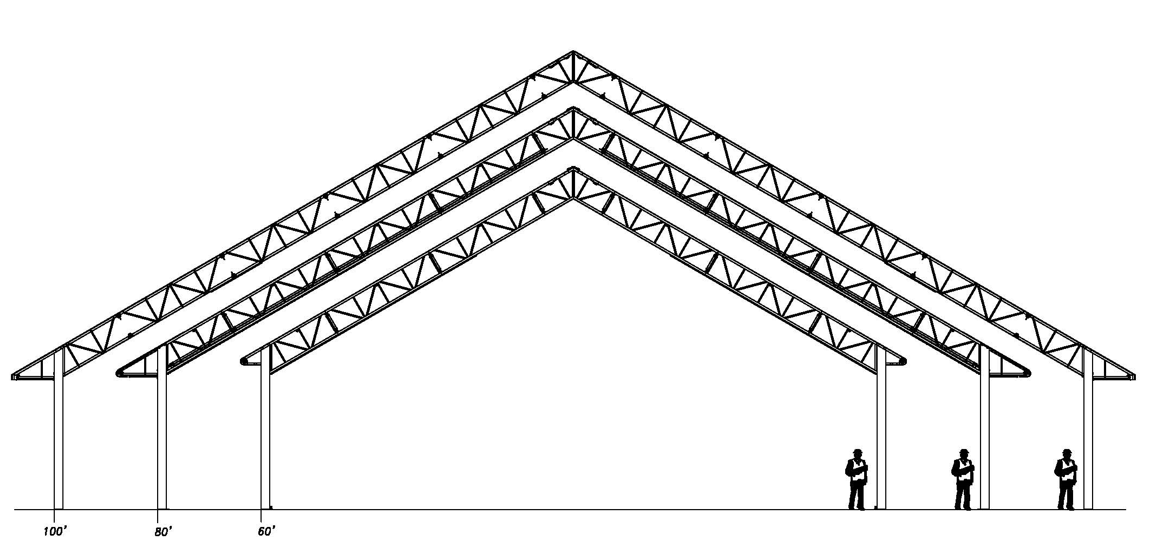

60', 80' or 100'
Agricultural and multi-use fabric structures
MegaDome offers a full range of structural profiles to match clearance, width, and application requirements.
| Profile | Available Widths | Truss Depth | Center Clearance | Side Clearance |
|---|---|---|---|---|
| HP-HD | 33', 40', 50', 60', 70', 80' | 16" (33'–40') | 24" (50'–80') | 15'3" – 25'7" | 7'2" – 9'10" |
| XP-HD | 33', 40', 50', 60', 70', 80' | 16" (33'–40') | 24" (50'–80') | 21'9" – 30'8" | 12'7" – 16'4" |
| HP-HHD | 50', 60', 70', 80' | 30" | 21'9" – 26'8" | — |
| XP-HHD | 50', 60', 70', 80', 100' | 30" | 26'9" – 36'0" | — |
| XXP-HHD | 50', 60', 70', 80' | 30" | 32'9" – 37'8" | — |
| S100 | 100', 125', 140', 160' | 33" (100'–125') | 58" (140'–160') | 46'11" – 53'1" | — |
Membrane
Standard 12 oz HDPE with 20-year guarantee. Agricultural membrane (30% light transmission) also available.
Customization Options
Overhead & roll-up doors, passive & active ventilation, lighting packages, multiple foundation types.
Lead Time
Typically 6–10 weeks for custom-engineered buildings. Turnkey installation available.
MegaDome fabric buildings serve 15 industries across North America.
From design to installation and ongoing support — a complete turnkey solution.
Every MegaDome structure starts with certified engineering, designed to meet your site-specific needs and local building codes.
MegaDome buildings are designed for efficient, on-site assembly with minimal disruption to your operations.
Responsive support for the full life of your building — from parts to inspections to warranty service.
Fill out the form below and we'll get back to you with a budget estimate for your engineered fabric building.
Or contact us directly
Manitoba MegaDome — providing MegaDome structures to Manitoba and Saskatchewan. We design, manufacture, and install permanent fabric buildings for industrial, municipal, and agricultural use.
